RPT8-S8
FULLY RUGGED TABLET
Overview

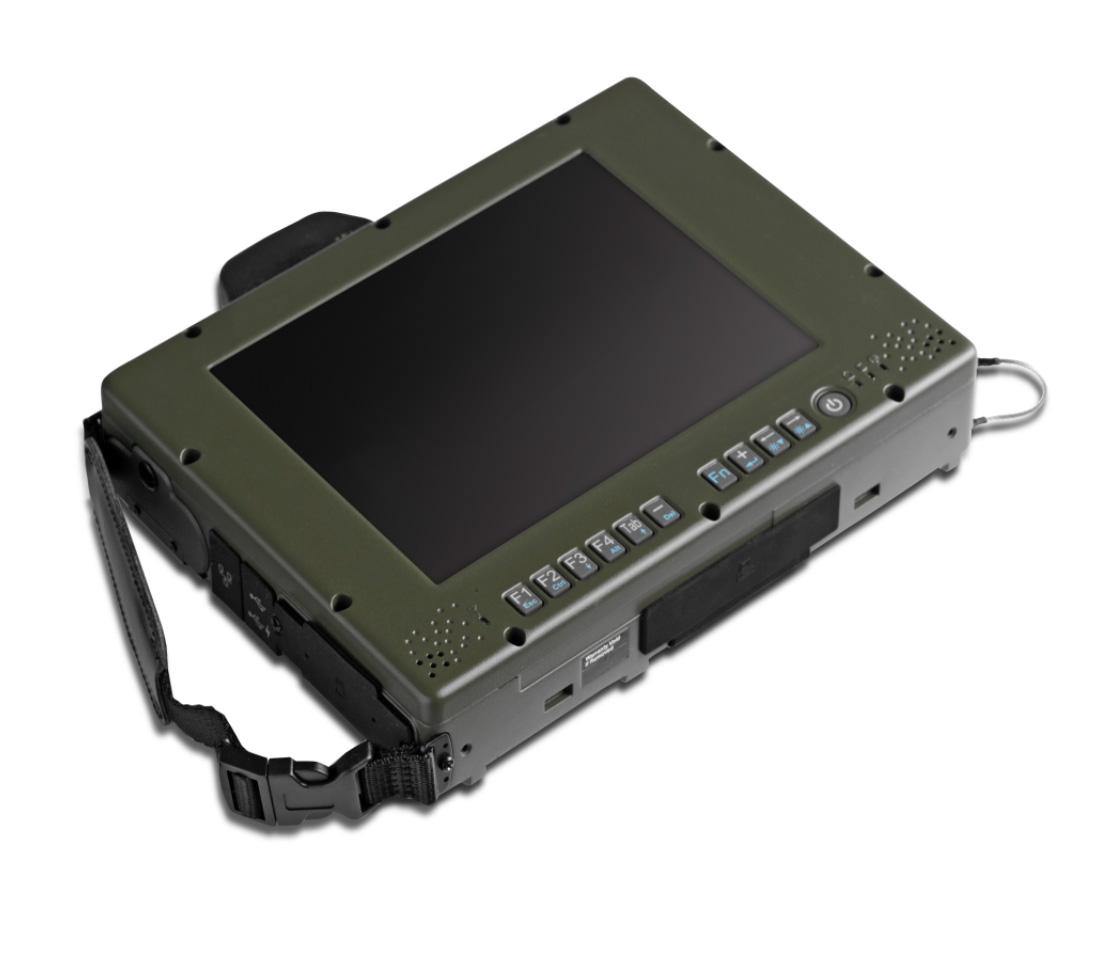

Opentec RPT8-S8
Opentec RPT8-S8 is the 6th generation of its kind and continues with the same form factor saving our customers additional investment in accessories like cables and mounts when replacing older series tablets. The RPT8-S8 tablet comes with a high-brightness display, powerful Intel® Core™ i7 CPU and a magnesium casing.
This specific material was chosen for its toughness, corrosion resistance and recyclability. This then ensures that we can provide you with the best quality product at every stage of its lifespan.
Opentec can offer a wide range of accessories and reuse customisation solutions developed for previous generations.
Customisable
Are you looking for features and functions beyond the standard solution? Customisable options are a great way to ensure you only pay for exactly what you need. This also allows you to keep your devices for longer, therefore reducing waste over the years.
Opentec specialises in customised solutions offering change of connectors, chassis modifications, mounting solutions, and much more. Contact your nearest local Opentec Sales Office, and we will help you find a solution that meets your requirements.
Guaranteed performance
Our products come with lifetime support to ensure your equipment maintains peak performance for many missions to come. This is achieved by using an advanced Intel® CoreTM i7-7600U Processor alongside high-quality Intel® HD Graphics 620. Combined, they provide users with reliability and peace of mind during tedious and stressful tasks.
We also guarantee spare parts for 5 years after the product’s end-of-life.
RPT8-S8 Technical Specifications
Platform |
|
|
OS |
Windows 10 | |
Processor |
− Intel® CoreTM i7-7600U − 4MBIntel® Smart Cache, up to 3.9 GHz − Intel® Vpro technology |
|
Chipset |
N/A | |
Graphics |
Intel® HD Graphics 620 | |
Display |
− 8.4″ XGA (1024 x 768) LCD − Optical Bonding − Resistive Single-Touch Type* *Interface: USB − Brightness (min.~typ.): 600~750 nits − Optional Invisible mode On/Off – Night Vision: By CDP, trade-off with Invisible mode On/Off |
|
Memory |
– 260 pin DDR4-2133 SO-DIMM x 1 – 8GB/16GB DDR4-2133, up to 16GB |
|
Storage |
– Removable 2.5″ SATAIII SSD* x 1 *Height: 7mm |
|
Sensor |
N/A | |
Integrated Options |
− 10/100/1000 base-T Ethernet* *1st GLAN: Intel® I219LM on MB 2nd GLAN Card: Intel® I210 Mini PCIe Card − Optional BT 5 /WiFi 802.11 a/b/g/n/ac − Optional GPS Module − WWAN 4G: By CDP. |
|
Audio |
HD Audio and Stereo Speakers | |
Security |
− Password security (supervisor password, user password) − Kensington Lock Slot − Optional TPM 2.0 (On Up Board) |
|
Keyboard |
N/A | |
Keypad |
– 1st Layer: F1, F2, F3, F4, Tab Key, Minus (-), Plus (+), Left Arrow, Right Arrow – 2nd Layer: Esc, Ctrl, Down Arrow, Alt, Up Arrow, Del, Fn, Enter, Decrease Brightness, Increase Brightness – Backlight |
|
LED Indicators |
− Power/S3 (Green/ Red) − SSD/Heater (Green/ Orange) − Charge/Battery Low (Orange/ Flashing Orange) − RF Devices (Blue) |
|
I/O port (Left) |
− 1st GLAN RJ45 x 1 (Intel® I219LM on MB) − USB 3.1 Gen. 1 x 2 (USB Direction: same as DR10) − Multi Bay: − ExpressCard Slot (ExpressCard/54) x 1 (Top) − SIM Card Slot x 1 + SD Card Slot x 1 (Bottom) |
|
I/O port (Right) |
− Serial DB9 x 1 (COM1) | |
I/O port (Rear) |
2nd Battery Connector x 1 | |
I/O port (Bottom) |
Docklite Connector (120 pin) x 1* *Signals: COM2 (Default: TTL), COM3 (Default: RS232), USB 2.0 x 1, Microphone, Speaker, Line-in, Va (19V), Vcc (3.3 V / 5 V), GND, VGA, PS2 KB/Mouse, IEEE1394a (Default: disable, by CDP), DVI, Optional GLAN *IEEE1394a: By CDP |
|
I/O Port (Top) |
N/A | |
Internal Ports |
− Mini PCIe full-size card x 2 (On Up Board) − M.2 2230 E key x 1 (WiFi/BT Module; On MB) − USB 2.0 x 4 − USB 3.1 Gen. 1 x 2 (for Left I/O) − Serial Ports x 4 (COM1~COM4)* − Display Port: By CDP *COM1: − Internal Signals: RS232, RS422, RS485, TTL (By CDP) − External COM1 port define RS232, can be selected by BIOS (RS232/RS422/ RS485); COM2/COM3: For Docklite; COM4: Reserved. |
|
Power |
− AC Adapter: 90W AC 100V~240V 50/60Hz − DC: 12~32V with BVA & Surge Protector DC-in Conn.: Std.: Industry 2 pin Optional: Military 3 pin − Battery: Std.: Battery Pack BDA3A: Li-Ion 10.8V/5800mAh Optional: Battery Pack BDA3B: Li-Ion 10.8V/8700mAh |
|
Case |
Magnesium | |
Colour |
– Black – NATO Green |
|
Environmental Specifications |
− Operating Temperature: Std: -20°C ~ +50°C Optional: -30°C ~ +50°C *-30°C operation with AC Adapter only. − Storage Temperature: -40°C ~ +70°C |
|
Certifications |
− CE/FCC − WEEE − REACH − RoHS2.0 − IP54 (Open Port) − MIL-STD-810G − MIL-STD-461G − Optional G.A. |
|
Dimensions (W) x (D) x (H) |
250 x 190 x 45.2 mm | |
Weight |
Approximately 2.3 kg *Weight includes DRAM x 1, WiFi/BT Module, GPS, 2nd GLAN Card, battery x 1, SSD x 1, BVA, Invisible mode On/Off |
Options
WLAN/ Bluetooth |
− Intel® Dual Band Wireless AC9260 − Wi-Fi Certificated: 802.11 a/b/g/n/ac − Bluetooth 5.0 − Interface: PCIe (WiFi)/USB (BT) − Form Factor: M.2 2230 |
GPS |
Ublox Neo-M8N GPS/GLONASS (Interface: USB) |
AMG Sensor Module |
N/A |
1st GLAN Card |
N/A |
2nd GLAN Card |
– Intel® I210 GLAN Card – Form Factor: mini PCIe full-size |
Memory |
8GB/16GB DDR4-2133 |
TPM 2.0 |
Available (On Up Board) * Infineon SLB9665XT2.0 FW5.61 |
Digital Mic |
N/A |
Invisible mode On/Off |
Available |
2nd Battery |
BDA3B: Li-ion 10.8V/8700mAh |
DC-In |
Military 3 pin |
Fischer Connectors |
N/A |
Vehicle Power Cord |
Available |
Wide Temp. |
-30°C ~ +50°C: Available Heater and sensor placed in LCD |
G.A. |
Available |
EVA1275 |
Available |
EVA19040 |
Available |
Stand Unit |
− Available − DR13 without rubber jacket can be mounted on Stand Unit. |
Docklight |
DL10 |
Battery Charger |
– Mulit Battery Charger MCDR – For Battery 10.8V/5800mAh Li-Ion BDA3A – For Battery 10.8V/8700mAh Li-Ion BDA3B |
